As population increases, production and transportation of goods increase to meet the global demand for human survival and comfort. Noise is a by-product of the goods produced and its transportation. More roads and railways are built to achieve connectivity among industrial and modern cities, towns and villages.
In spite of advanced technology, aerodynamic design of vehicles and better transportation systems, high intensity noise generation is imminent due to demand for larger and faster transportation vehicles which convert a portion of energy consumed into noise energy, which is defined as Noise Pollution.
In order to provide efficient means of noise suppression where enclosures cannot be built and when simpler soundproofing methods are viable, acoustic barriers are introduced. Depending on the source of noise and need of the customer, Thermosonics provides cost effective solutions that have a durable design, low maintenance cost and longer life cycle.
Thermosonics has designed, fabricated and installed following variations of acoustic barriers across industrial, commercial and residential spaces
1) Noise Barriers

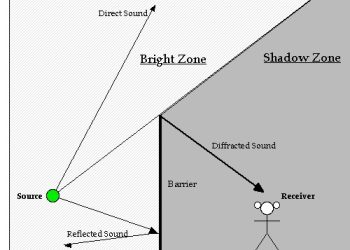

Noise pollution caused due to transportation, manufacturing and other activities have an adverse impact on human health. To create a hospitable environment to live and work there is a need to alleviate noise produced, noise barriers have proven to be an effective solution to this problem.
Thermosonics has a strong forte in designing and producing in house noise barriers that are both technically sound and aesthetically pleasing. The production of noise barriers depends upon the desired acoustic performance and the environment/ soil condition at site of installation. With these in mind we provide the following types of noise barriers.
Previous image
Next image
click to enlarge image
Metal barriers
Wooden barriers
Plexiglass/ polycarbonate barriers
Earth beams
For reduce flow induced noise, scrubbers or anti vibration units are attached externally.
Some notable features of the Noise barriers are
Modular design with ready to install features
They are designed to be either mono-absorbent or bi-absorbent
Designed for installation across roadways, railway lines, complex boundaries etc.
We provide both permanent and portable designs for customer convenience.
The following table provides a detailed information on effectiveness of noise barriers for mono and bi – absorbent walls
NOISE DROP FOR DIFFERENT NOISE BARRIERS
MATERIAL
MONO-ABSORBENT
BI-ABSORBENT
50 MM THK.
100 MM THK.
50 MM THK.
100 MM THK.
ALUMINIUM
10-12
15-17
16-18
24-27
GI SHEET
8-10
14-16
12-14
20-22
POLYCARBONATE
8-12
10-14
16-18
20-22
2) Retractable Walls for Acoustic Partition (RWAP)
Effective space utilization is a vital quality within the commercial and industrial sector. Often occasions require larger spaces to be divided into smaller areas for work or event management purposes. Thermosonics provides our clientele across the hospitality sector with a cost effective yet acoustically sound wall barrier. These units are designed similar to a noise barrier and installed along the length of a room that slides across to create an effective separation.
These units are generally seen within conference halls and large auditoriums where the need to create a separation for private and public spaces is a must. The walls are linearly stack noise barriers with small thickness for easy movement during retraction.
click to enlarge image
The standout features of our walls are
Custom design with provision for additional retractable sections for the barrier wall.
Our retractable acoustic partition offers STC of 45 dBA.
2) Acoustic Room Treatment
At times, customers have already executed noise control methodology but fail to meet the desired requirement as per statutory norms. We have expertise in diagnosing the shortfall and provide customised solutions through our room treatment technique. Applications for soundproofing extend not only to equipment but also to augment noise cancelling ability of rooms with layers of proofing materials and other techniques.
Previous image
Next image
click to enlarge image
For structures built to ensure an optimum level of sound for operational or residential purposes, the room treatment method provides a more efficient means to reduce the noise levels without affecting the aesthetics of the room. Our designs are custom built with modular installation, and provided with acoustic doors, windows and other auxiliary systems like ventilation, exhaust and illumination based on client requirements.
We offer customized solutions using latest technology in acoustical engineering.
